Galvanized Steel

Galvanized steel is carbon or high-strength steel coated with zinc, giving strong corrosion protection together with good formability and weldability. MOOPEC supplies automotive-grade galvanized coils, slit coils and cut-to-length blanks to OEM and Tier-1 standards.

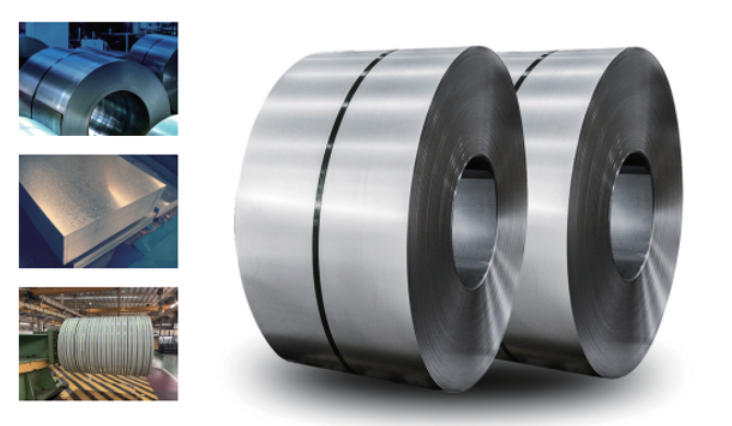

galvanized steel

Galvanized Steel

A zinc coating protects steel in two ways: it forms a physical barrier against moisture and oxygen, and it corrodes sacrificially to protect the steel underneath, even at cut edges and scratches. Galvanized sheet is mainly supplied as hot-dip galvanized (GI), galvannealed (GA) or electro-galvanized (EG).

Hot-dip galvanized (GI, +Z): the strip passes through a molten zinc bath on a continuous line, giving a durable pure-zinc coating for structural and underbody parts.
Galvannealed (GA, +ZF): the coating is heat-treated straight after the zinc bath to form a zinc-iron alloy layer with excellent spot-weldability and paint adhesion, widely used for body panels.
Electro-galvanized (EG, +ZE): a thin, uniform zinc layer applied by electroplating, giving a very smooth surface for exposed outer panels.

Excellent Corrosion Resistance

Barrier and sacrificial zinc protection, including at cut edges

Long Service Life

Durable protection for body, chassis and underbody parts

Formable & Weldable

Suited to stamping, spot welding, phosphating and e-coating

MAIN PRODUCTS

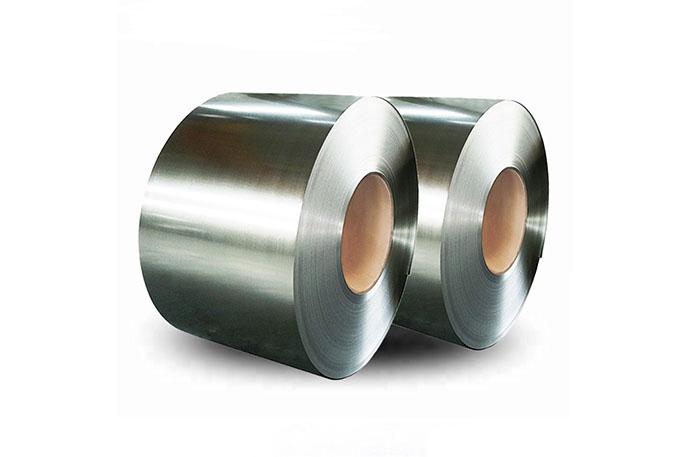

en10346

EN10346

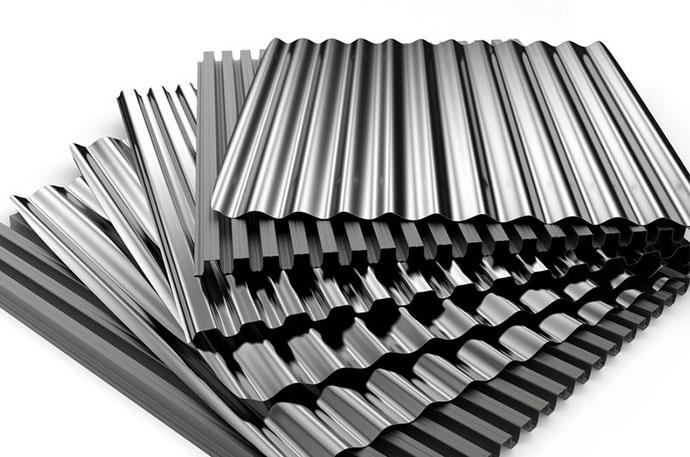

gmw3032

GMW3032

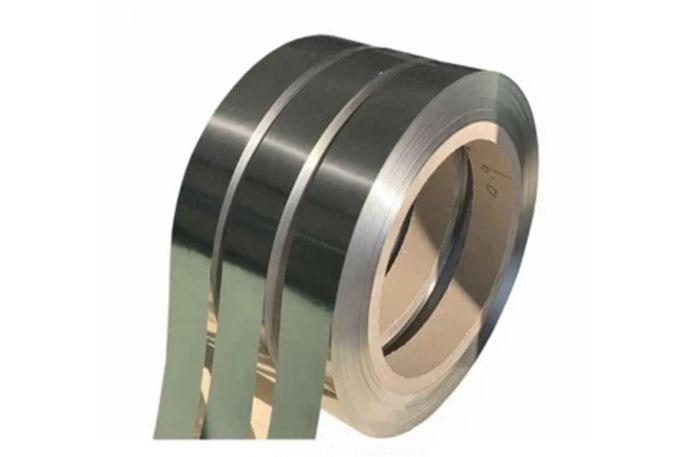

vda239 100

VDA239-100

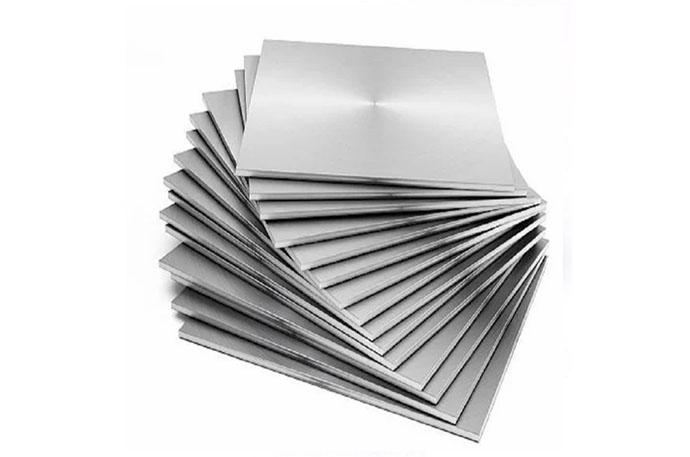

wss,m1a367,a11 a50

WSS-M1A367-A11/A50

q jly j7111108a 2017

Q/JLY J7111108A-2017

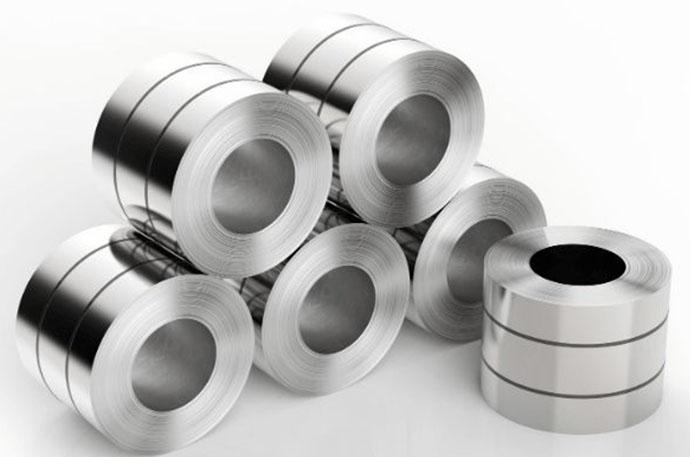

astm a 653 a 653m 06

ASTM A653/A653M

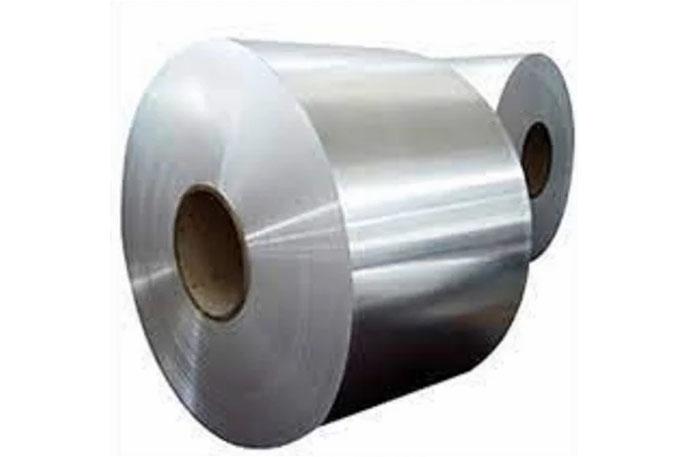

jis g3302

JIS G3302

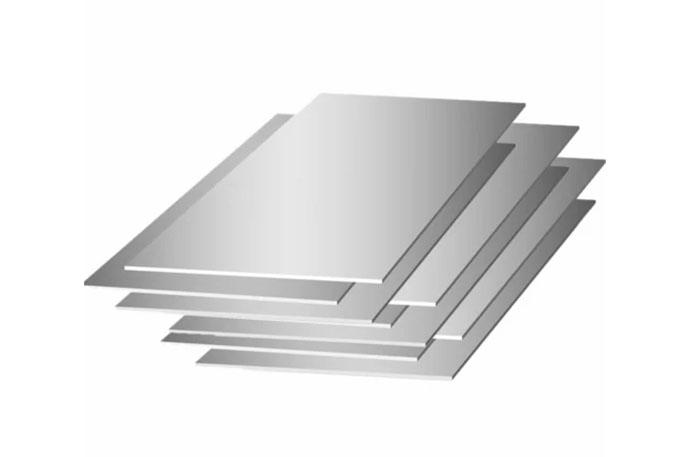

vw50065

VW50065

Dual-Phase (DP) High-Strength Galvanized Steel

GMWWSS-M1A367(Ford)MSENQ/BQB
FE450DP+Z/ZF CR450T/250Y DP+Z/ZFHCT450X+Z/ZFHC250/450DP+Z/ZF
FE500DP+Z/ZFDPC290Y490T+Z/ZFCR490T/290Y DP+Z/ZFHCT490X+Z/ZFHC290/490DP+Z/ZF
FE600DP+Z/ZFDPC340Y590T+Z/ZFCR590T/340YDP+Z/ZFHCT590X+Z/ZFHC340/590DP+Z/ZF
FE800DP+Z/ZFDPC420Y780T+Z/ZFCR780T/420Y DP+Z/ZFHCT780X+Z/ZFHC420/780DP+Z/ZF
FE1000DP+Z/ZF  HCT980X+Z/ZFHC500/780DP+Z/ZF
 DPC550Y980T+Z/ZFCR980T/550Y DP+Z/ZFHCT980XG+Z/ZFHC550/980DP+Z/ZF
FE1200DP+Z/ZFDPC700Y980T+Z/ZF  HC650/980DP+Z/ZF
FE900MP+Z/ZFDPC950Y1180T+Z/ZF HCT1180X+Z/ZFHC820/1180DP+Z/ZF
FE1000MP+Z/ZF CR900T/700Y MS+Z/ZF HC700/900MS+Z/ZF
    HC700/900MS+Z/ZF
  CR1100T/860Y HC860/1100MS+Z/ZF

Applications

Automotive Applications

Galvanized steel is the standard choice for vehicle bodies. Its zinc coating gives structural components and bodywork the corrosion resistance they need over the vehicle’s service life.

Typical applications include body-in-white panels, doors, hoods and closures, pillars and structural reinforcements, brackets and underbody parts.

MOOPEC can supply galvanized material as coils, slit coils or cut-to-length blanks to your dimensions, with mill certificates for each delivery.

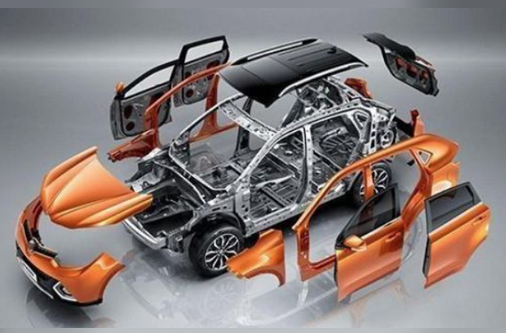

automobile body
Automotive body-in-white parts
