TRANSFORMER CORE & COMPONENT MANUFACTURING
From Precision-Cut Laminations to Assembled Components
MOOPEC supports transformer-component manufacturing from precision-cut CRGO laminations to assembled laminated cores, wound-core configurations, semi-finished active parts and custom HV/LV windings.
Manufacturing Support for Your Required Delivery Stage
Customers do not always require the same delivery stage. Some projects need prepared laminations, others need an assembled core, a wound-core configuration, a semi-finished active part or a winding package. MOOPEC reviews the drawing, material, transformer type, voltage class, capacity, dimensions, target performance, inspection plan and destination before defining the supply scope.
Transformer Core Manufacturing Flow
| Step | Manufacturing Stage | Process Description |
|---|---|---|
| 01 | Precision blanking | Prepare CRGO laminations to the customer drawing and cutting plan. |
| 02 | Lamination stacking | Build the required core geometry in the specified stacking sequence. |
| 03 | Alignment and fit-up | Control lamination alignment, joint fit and core dimensions before final assembly. |
| 04 | Clamping and assembly | Secure the core according to the specified construction and delivery requirement. |
| 05 | Dimensional inspection | Check critical dimensions and assembly condition before release. |
Deep Processing - Core Options
Add Your Heading Text Here
MOOPEC manufactures laminated cores for different transformer constructions and operating environments. Core geometry, material grade, dimensions, joint design, clamping arrangement and performance requirements follow the customer drawing.
Laminated Transformer Core Types
Core option

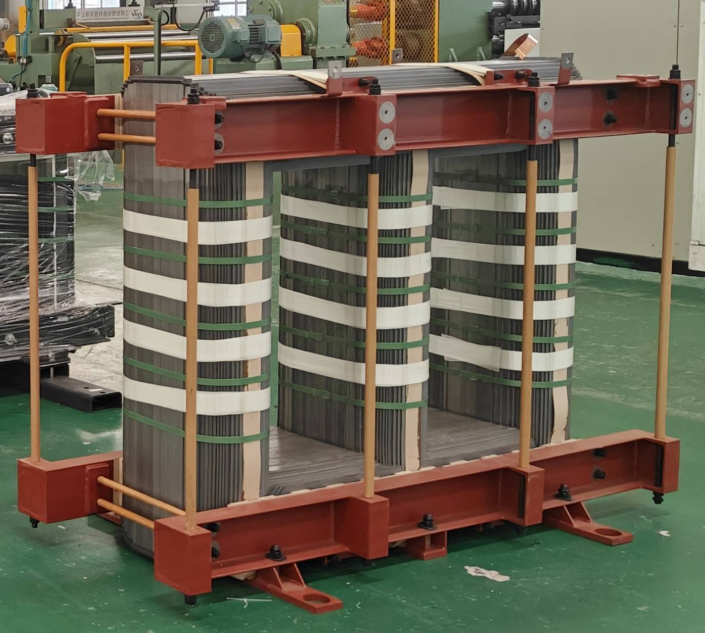

10kV distribution transformer core
Drawing-based core solution for 10kV distribution-transformer programmes.

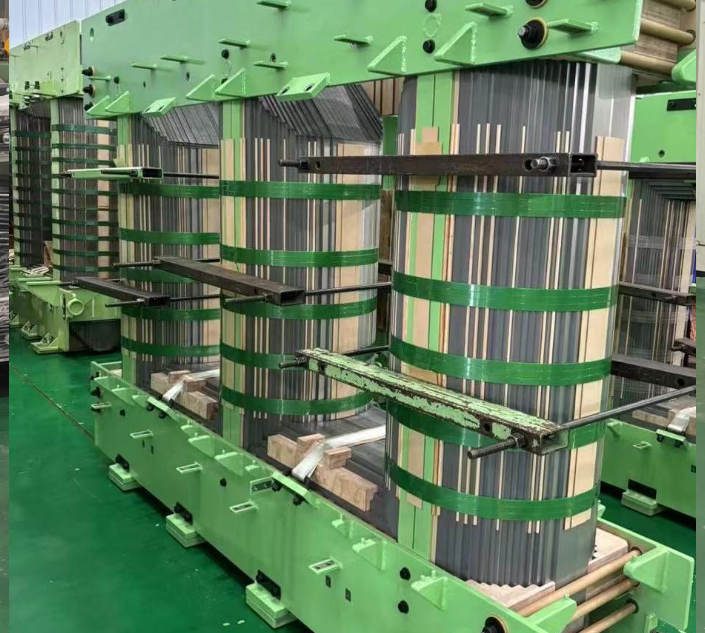

Oil-immersed transformer core
Laminated core construction for oil-immersed distribution or power-transformer designs.

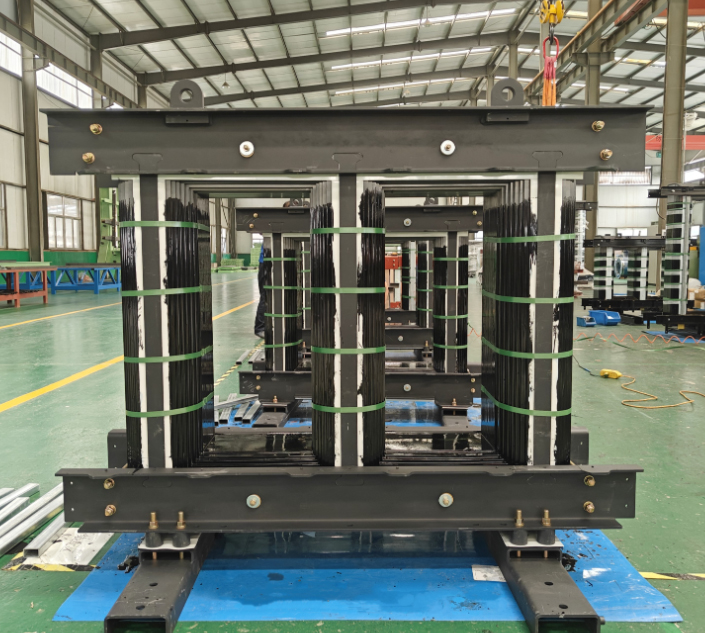

Dry-type transformer core
Laminated core solution for customer-defined dry-type transformer applications.
Special multi-column transformer core
Custom multi-column geometry for special-purpose transformer requirements.
Wound-Core Options
Add Your Heading Text Here
Wound-Core Options
Continuous wound silicon steel core options are available for customer-specific transformer designs. The appropriate construction is selected according to the drawing, dimensions, material, winding arrangement, required delivery stage and application requirements.
Core option
UNI Core
Custom UNI Core configuration manufactured to the customer drawing and project requirements.

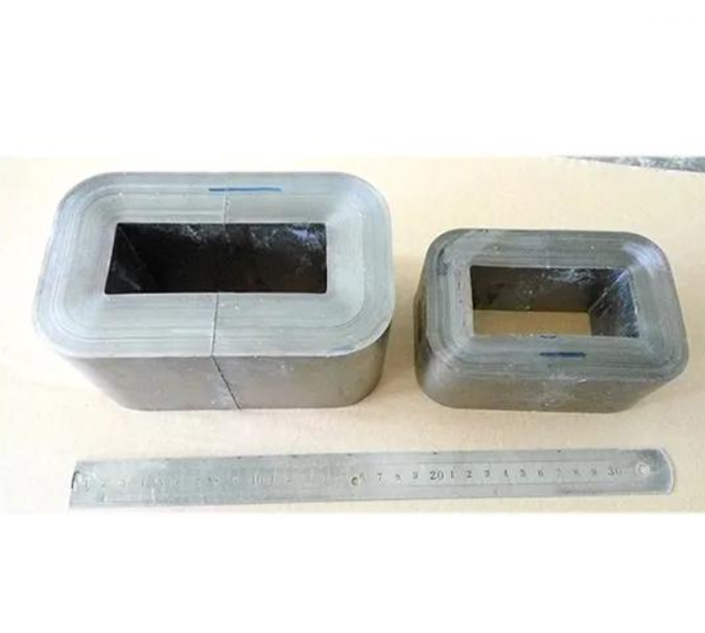

RACE Core
RACE Core option for customer-defined dimensions, material and application requirements.
Octagonal / 3D Wound Core
Octagonal or three-dimensional wound-core configuration for custom transformer designs.
Deep Processing
Extended Manufacturing Scope
01
Semi-Finished Active Parts
For projects that require fewer production interfaces, MOOPEC can coordinate core processing, winding integration, active-part assembly and inspection within an agreed semi-finished transformer scope. The quotation should define the included components, customer-supplied information, assembly stage, inspection points, documentation and packing method.
02
Custom HV & LV Windings
MOOPEC produces custom high-voltage and low-voltage windings according to customer drawings and order specifications. Enquiries should include the transformer type, voltage class, rated capacity, winding dimensions, conductor and insulation requirements, terminal arrangement, quantity and inspection plan.
03
Inspection and Traceability
Inspection is defined for each product and delivery stage. It may include incoming-material verification, dimensional measurement, mechanical-property testing, in-process checks, assembly inspection, data logging, production records and batch traceability.
Third-party or SGS reports can be included in the order with the test items, sample plan, acceptance criteria and report format clearly stated.
04
Packaging and Export Preparation
Packaging is selected according to the product, handling method, transport route and storage requirement. Master coils may be prepared using horizontal or vertical packing with protective materials, edge protection, strapping and a suitable base. Finished cores, wound cores, windings and semi-finished assemblies require product-specific protection and secure export packing.
Applications & Conversion Content
Available Delivery Stages
Prepared laminations
Cut components ready for the agreed stacking or assembly process
Assembled laminated core
Stacked, aligned, clamped and dimensionally inspected core
Wound core
UNI, RACE or Octagonal / 3D configuration to customer requirements
HV/LV winding
Custom winding produced to the customer drawing and order specification
Semi-finished active part
Agreed combination of core, windings, assembly and inspection
Creative and innovative projets
Our projects are always veniam, quis nostrud exercitation.
Why Us
Our Commitment to Reliable Metal Supply & Customised Solutions
Expertise & Experience
With years of industry experience, our skilled team brings unparalleled material expertise and supply‑chain agility to every project.
Customized Solutions
We tailor our full‑scope service — from steel sourcing, precision fabrication to export preparation — to fit your production capacity, consolidating your technical requirements into a single enquiry.
Sustainable Practices
We prioritise traceable raw materials and streamlined workflows, delivering dependable industrial solutions that support responsible manufacturing.
F.A.Q.
Frequently Asked Questions
MOOPEC processes grain-oriented and non-oriented silicon steel. The technical review covers the grade, thickness, coating and coil condition for each order.
Yes. Submit the customer drawing and technical requirements, including material, geometry, dimensions, delivery stage and inspection needs.
Yes. The quotation defines the included core, winding, assembly, inspection and documentation activities.
Yes. Inspection records and third-party or SGS reports can be included with the required tests, acceptance criteria and report format stated in the order.
Provide transformer type, voltage class, rated capacity, core construction, material grade, dimensions, target performance, delivery stage, quantity, inspection requirements, destination and technical drawings.
