SILICON STEEL PROCESSING SERVICES
Precision Slitting and Cut-to-Length Blanking
From master coil to slit coil, cut sheet or transformer-core lamination, MOOPEC provides controlled silicon steel processing based on your material, dimensions, quantity and delivery requirements.
___ ___
Processing Built Around Your Specification
Every processing enquiry starts with your material and finished‑format requirements, where MOOPEC evaluates steel grade, dimensions, specifications, quantity, tolerances, packing and delivery to create a tailored production plan, supporting drawing‑based supply options from full coils to slit coils, cut sheets and laminations while locking in order‑specific processing and inspection standards.
Material Grade Confirmation
Finished‑Product Dimension Confirmation
Quantity & Lead‑Time Confirmation
Packaging & Delivery Confirmation
Services & Capabilities

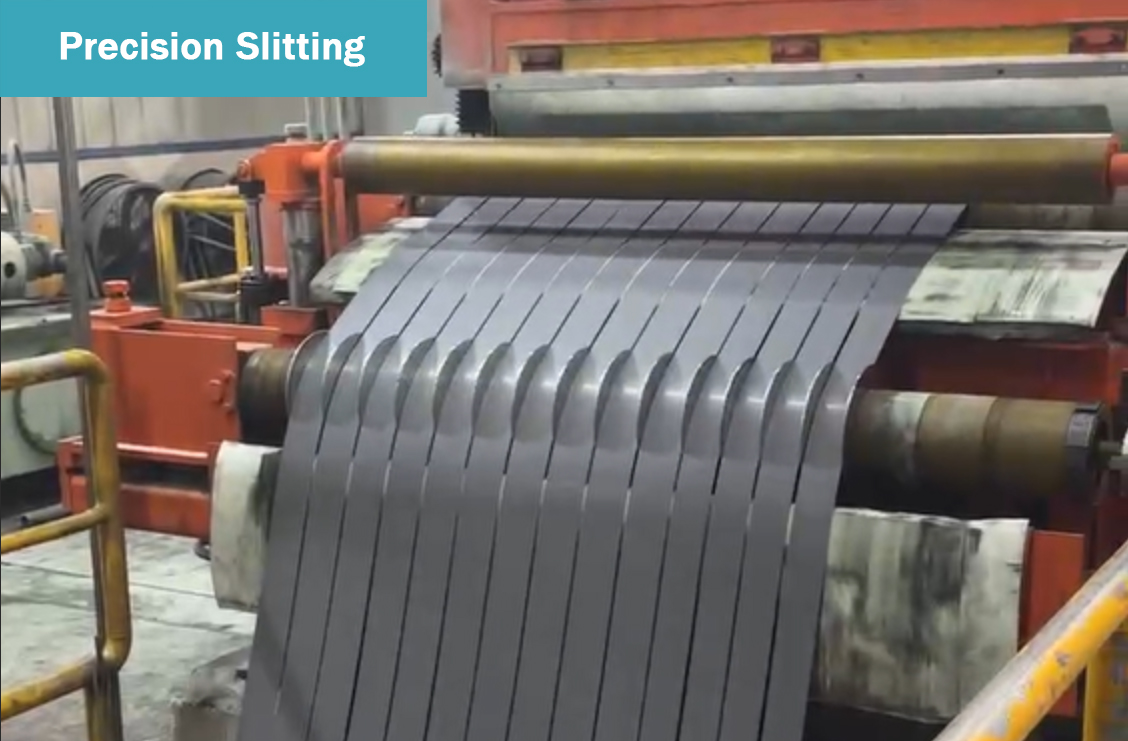

Slitting cuts wide silicon steel master coils into narrow strips for transformer‑core cutting, lamination and other electrical‑steel uses per customer‑specified widths. Production pre‑checks: material grade, coating, coil dimensions, finished width, edge and recoiling requirements.

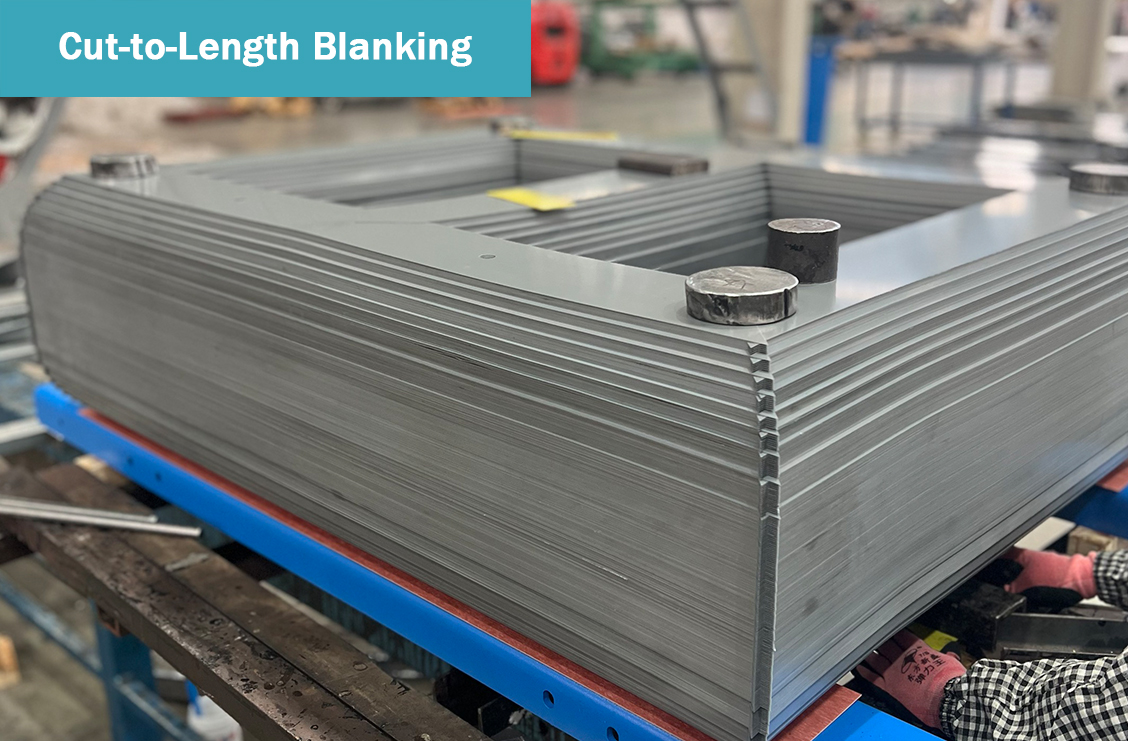

Cut‑to‑length blanking produces silicon steel sheets/laminations to target lengths. Multiple line formats support diverse sheet sizes. Controlled feeding and magnetic stacking facilitate handling, inspection and downstream production.
Processing Capabilities
| Capability | Value |
|---|---|
| Steel type | Grain-oriented and non-oriented silicon steel |
| Slitting input thickness | 0.15-0.60 mm |
| Slitting input width | 100-1,350 mm |
| Input coil ID | 508 mm; 610 mm with adapter |
| Maximum input coil weight | 25 MT |
| Output coil OD | 600-2,100 mm |
| Maximum line speed | 200 m/min |
| Output slit width | 20-1,350 mm |
| Maximum output coil weight | 25 MT |
| CTL-250 sheet length | 250-1,250 mm |
| CTL-400 sheet length | 250-2,500 mm |
| CTL-600 sheet length | 250-2,500 mm |
| Blanking thickness | 0.15-0.35 mm |
| Blanking feeding speed | 0-214 m/min |
| Cutting-length accuracy | +/- 0.1 mm |
| Output handling | Magnetic stacking |
Workflow & Quality

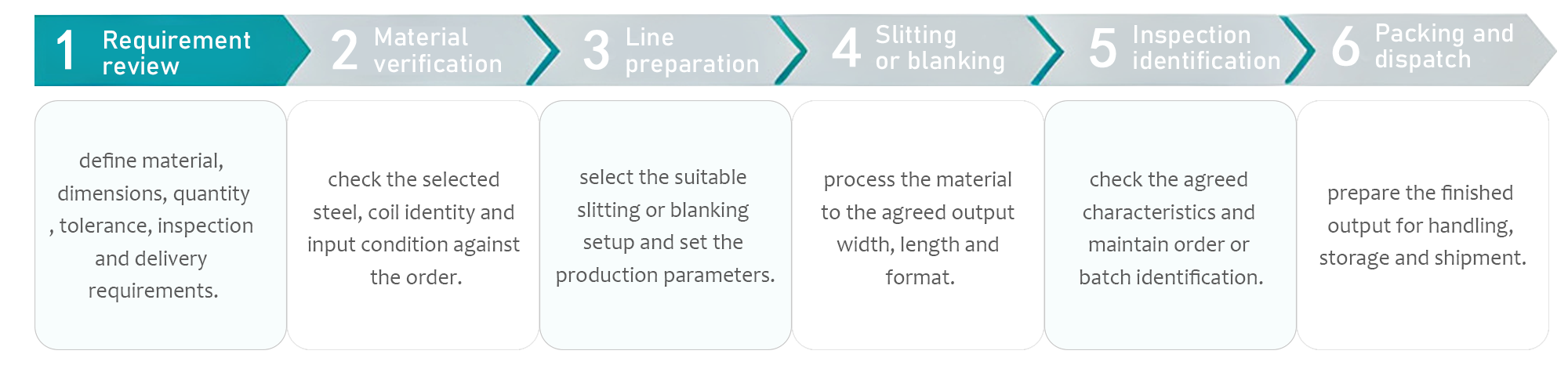

Controlled Processing Workflow
Our quality
Quality Control and Traceability
Production and inspection records remain linked to the relevant order or batch. Third-party testing or SGS reporting can be included with the required test items, acceptance criteria and documentation format stated in the order.
Inspection is matched to the ordered product and control plan. Checks may include material and coil identification, slit width or cut length, thickness, edge and surface condition, dimensional conformity, output quantity and packing condition.
Typical Processing Outputs

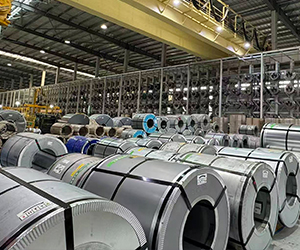

Full or master coil
Material supply for the customer’s own processing line

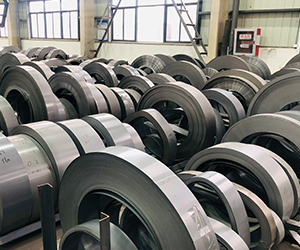

Slit coil
Downstream transformer-core cutting or other electrical-steel processing

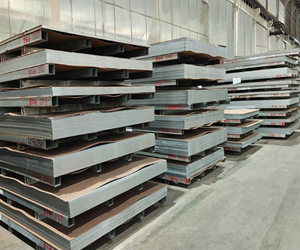

Cut sheet
Prepared electrical-steel sheet for subsequent manufacturing

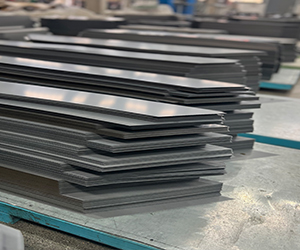

Core lamination
Stacking and assembly of laminated transformer or reactor cores
Service Applications

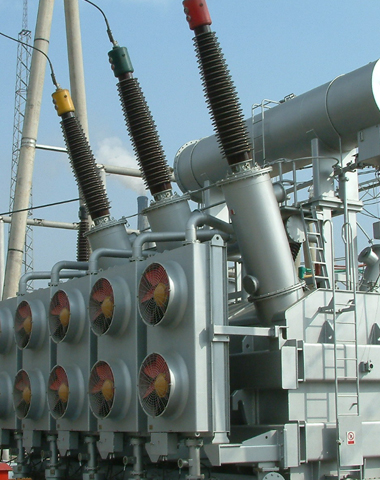

Transformer-core lamination programmes for distribution, dry-type and oil-immersed designs.
Prepared strips or sheets for reactors, inductive components and electrical equipment.
Why Work with MOOPEC
We deliver reliable, customer‑oriented raw‑material solutions built for automotive, stamping and tooling operations.
Integrated supply
Coordinate electrical‑steel sourcing and processing through one commercial contact.
Multiple output formats
Request full coil, slit coil, cut sheet or prepared lamination according to the required production stage.
Drawing-led review
Define material, dimensions, tolerance and inspection requirements before production.
Inspection support
Define the required checks, traceability records and reporting within the order scope.
Export preparation
Select suitable protection and packing according to the finished product and shipment plan.
The one‑stop destination for tailored metal raw‑material solutions across your industrial projects.
F.A.Q.
Frequently Asked Questions
MOOPEC processes grain-oriented and non-oriented silicon steel. The technical review covers the grade, thickness, coating and coil condition for each order.
Available formats include full coils, precision-slit coils, cut sheets and prepared laminations. The required output format is specified in the enquiry.
Yes. Submit the drawing together with the material, dimensions, tolerance, quantity and inspection requirements for a drawing-based quotation.
Provide the steel type and grade, thickness, input width, coil ID and weight, required slit width or sheet length, quantity, tolerance, packing requirement, destination and technical drawing.

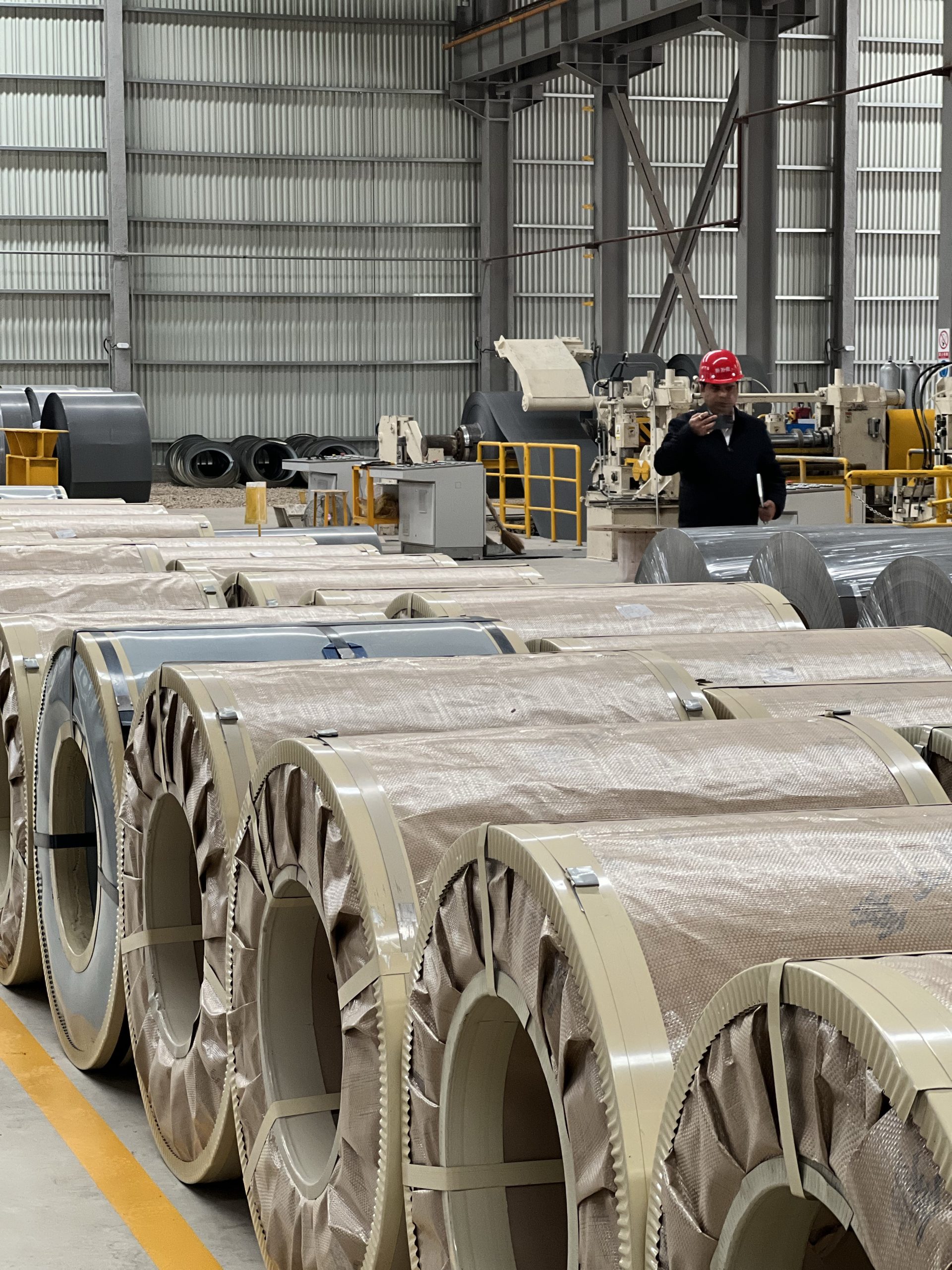

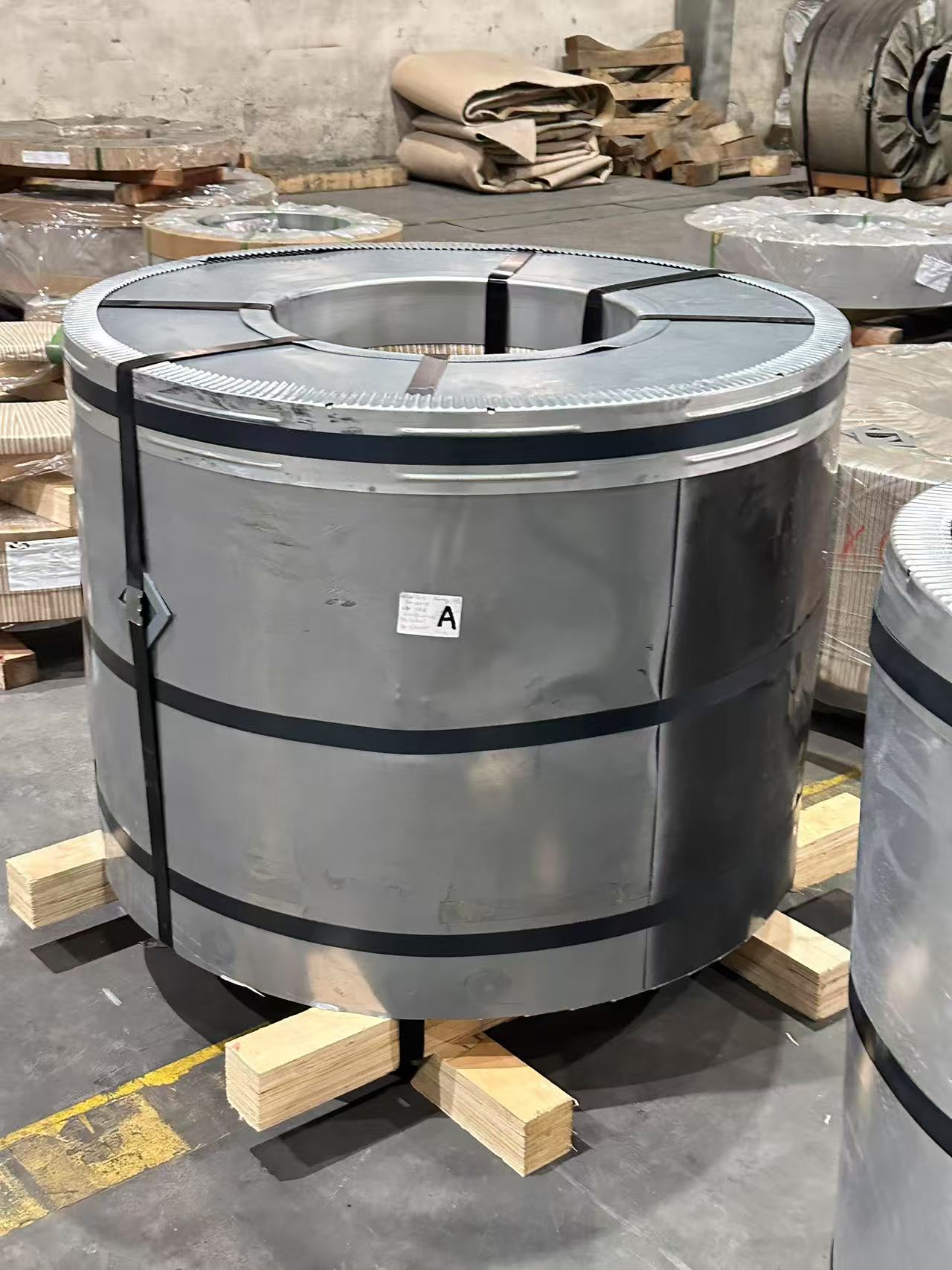

Packing is selected according to the product format, transport method and storage requirement. Master coils may use horizontal or vertical packing where appropriate; other outputs use order-specific protective packing.
