Stainless Steel
Stainless steel is a corrosion-resistant, strong and versatile sheet metal widely used in construction, industry and manufacturing, known for its weather resistance and aesthetics.

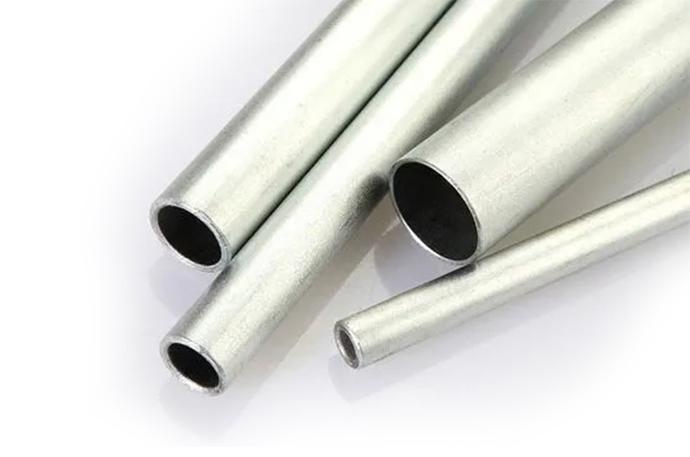

316 stainless steel
316 Stainless Steel Metal For Chemical Industry
Due to the addition of Mo, its corrosion resistance, atmospheric corrosion resistance and high temperature strength are particularly good, which can be used in harsh and cold conditions; Excellent work hardening (non-magnetic). Its high temperature stability and oxidation resistance make it widely used in Marine and chemical fields.
| Standard | Grade | Chemical Composition (wt%) | |||||||
|---|---|---|---|---|---|---|---|---|---|
| C | Si | Mn | P | S | Cr | Ni | Mo | ||
| EN 1.4404 | 316L | ≤0.030 | ≤1.0 | ≤2.0 | ≤0.045 | ≤0.015 | 16.5-18.5 | 10.0-13.0 | 2.0-2.5 |
| ASTM 316L | 316L | ≤0.030 | ≤0.75 | ≤2.0 | ≤0.045 | ≤0.030 | 16.0-18.0 | 10.0-14.0 | 2.0-3.0 |
| Grade | Mechanical Property | PREN* | ||
|---|---|---|---|---|
| Cr | Mo | N | ||
| ASTM316L | 16.5 | 2.0 | 0.02 | 23.5 |
| 316LDM2.0 | 16.5 | 2.0 | 0.05 | 23.9 |
| 316LDM2.2 | 17.5 | 2.2 | 0.05 | 25.6 |
| 316LDM2.5 | 17.3 | 2.6 | 0.05 | 26.7 |
| Grade | Ni | Mo | N | Md30 | PREN |
|---|---|---|---|---|---|
| ASTM316L | 10.1 | 2.0 | 0.02 | -41 | 23.0 |
| SUS316L | 12.1 | 2.0 | 0.03 | -120 | 24.5 |
| 316LNM | 13.6 | 2.5 | 0.08 | -193 | 26.1 |
| Standard | Mechanical Property | |||||
|---|---|---|---|---|---|---|
| Yield 0.2% | Yield 1.0% | Tensile (MPa) | Elongation % | HRB | ||
| ASTM 240 | >170 | – | >485 | >40 | <95 | |
| GB 24511 | >210 | >260 | >490 | >40 | <95 | |
| EN 10028 | C | >240 | >245 | 530-680 | >40 | – |
| EN 10028 | H | >220 | 530-680 | >40 | – | |
|
ZP316LDM Representative value |
290 | >205 | 655 | 56 | 87 | |
| Product | Thickness (mm) | Width (mm) | Length (mm) | Weight (Ton) | Surface Treatment | |
|---|---|---|---|---|---|---|
| Coil | Hot Rolling | 4.0~16.0 | 1000~1600 | – | 30 max. | No.1 |
| Cold Rolling | 0.5~5.0 | 1000~1600 | – | 2B | ||
| Hardness | HV | TS(N/mm2) | YS(N/mm2) | EL(%) | Thickness | Product |
|---|---|---|---|---|---|---|
| 1/4H | 200-250 | ≥650 | ≥400 | ≥15 | 0.6-4.5 |
Skelp Sheet Coil |
| 1/2H | 250-310 | ≥780 | ≥675 | ≥6 | 0.6-4.5 | |
| 3/4H | 310-370 | ≥930 | ≥800 | ≥3 | 0.6-4.0 | |
| H | ≥370 | ≥1130 | ≥950 | – | 0.6-3.0 | Coil |
