Silicon steel
Silicon steel is an iron‑silicon soft‑magnet alloy with silicon added to reduce core loss and boost magnetic permeability. Commonly used in power grid, new‑energy vehicle and electrical equipment fields.

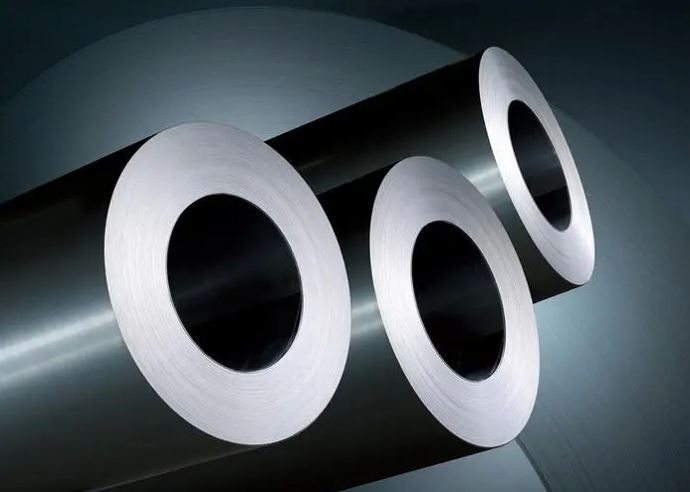

Non-oriented Electrical Steel
The 50W1300 CRNGO steel transformer core laminate material is a transformer core composed of multiple layers of high-performance magnetic steel sheets. It is a special type of silicon steel with excellent magnetic properties and low energy consumption. It is primarily composed of silicon, iron, and small amounts of carbon, manganese, and other elements. With its high permeability and low hysteresis loss, it is widely used in power transmission and conversion.
| 0.36 mm (0.0140 in.) Thickness | 0.47 mm (0.0185 in.) Thickness | 0.64 mm (0.0250 in.) Thickness | ||||||
|---|---|---|---|---|---|---|---|---|
| Core-Loss Type | Maximum Core Loss | Core-Loss Type | Maximum Core Loss | Core-Loss Type | Maximum Core Loss | |||
| W/kg | (W/lb) | W/kg | (W/lb) | W/kg | (W/lb) | |||
| 36F145 | 3.20 | (1.45) | – | – | – | – | – | – |
| 36F155 | 3.42 | (1.55) | 47F165 | 3.64 | (1.65) | 64F200 | 4.41 | (2.00) |
| 36F165 | 3.64 | (1.65) | 47F180 | 3.97 | (1.80) | 64F210 | 4.63 | (2.10) |
| 36F175 | 3.86 | (1.75) | 47F190 | 4.19 | (1.90) | 64F225 | 4.96 | (2.25) |
| 36F185 | 4.08 | (1.85) | 47F200 | 4.41 | (2.00) | 64F235 | 5.18 | (2.35) |
| 36F195 | 4.30 | (1.95) | 47F210 | 4.63 | (2.10) | 64F250 | 5.51 | (2.50) |
| 36F205 | 4.52 | (2.05) | 47F240 | 5.29 | (2.40) | 64F275 | 6.06 | (2.75) |
| – | – | – | 47F280 | 6.17 | (2.80) | 64F320 | 7.05 | (3.20) |
| – | – | – | 47F400 | 8.82 | (4.00) | 64F500 | 11.02 | (5.00) |
| – | – | – | 47F450 | 9.92 | (4.50) | 64F550 | 12.13 | (5.50) |
A. See Practice A664.
B. The test density shall be the correct ASTM assumed density (in accordance with 14.2) for the chemistry used by the producer to meet the property requirements of the specification.
C. Maximum core losses at a magnetic flux density of 1.5 T (15KG) and 50 Hz are 0.79 times maximum core losses at 60 Hz.
D. One half of strips cut parallel to the steel rolling direction, one half of strips cut perpendicular to the steel rolling direction.
| 0.36 mm (0.0140 in.) Thickness | 0.47 mm (0.0185 in.) Thickness | 0.64 mm (0.0250 in.) Thickness | ||||||
|---|---|---|---|---|---|---|---|---|
| Core-Loss Type | Typical Relative Peak Permeability | Core-Loss Type | Typical Relative Peak Permeability | Core-Loss Type | Typical Relative Peak Permeability | |||
| μr | μr | μr | ||||||
| 36F145 | 700-1100 | – | – | – | – | – | – | |
| 36F155 | 750-1150 | 47F165 | 800-1200 | 64F200 | 800-1250 | |||
| 36F165 | 800-1200 | 47F180 | 800-1250 | 64F210 | 800-1300 | |||
| 36F175 | 1000-1600 | 47F190 | 800-1650 | 64F225 | 800-1700 | |||
| 36F185 | 1000-1650 | 47F200 | 800-1700 | 64F235 | 800-1750 | |||
| 36F195 | 1000-1700 | 47F210 | 800-1750 | 64F250 | 800-1800 | |||
| 36F205 | 1000-2000 | 47F240 | 900-2050 | 64F275 | 900-2100 | |||
| – | – | – | 47F280 | 900-2150 | 64F320 | 950-2200 | ||
| – | – | – | 47F400 | 1500-2250 | 64F500 | 1500-2300 | ||
| – | – | – | 47F450 | 1500-2400 | 64F550 | 1500-2500 | ||
A. One half of strips cut parallel to the steel rolling direction, one half of strips cut perpendicular to the steel rolling direction.
