Aluminium Alloy
Aluminum alloy is a material composed of aluminum and other metal elements
with light weight, high strength characteristics, widely used in industrial and manufacturing fields.
GMW15192
It is applicable to two types of wrought aluminum alloys; age hardenable and non-age hardenable. Age hardenable (e.g., 6000 series) aluminum alloys can be used for exposed and unexposed applications. Due to surface characteristics, non-age hardenable (e.g., 5000 series) alloys may not be suitable for exposed applications.
Material: 5000 Series / 6000 Series
Application: Typical applications include body and closure panel applications such as hoods, doors, fenders, liftgates, body sides, roofs, and underbody components.

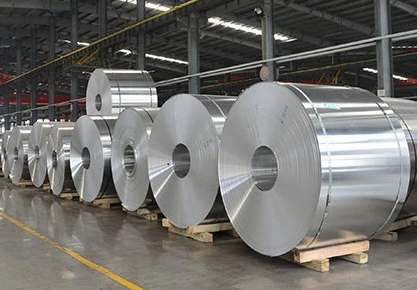

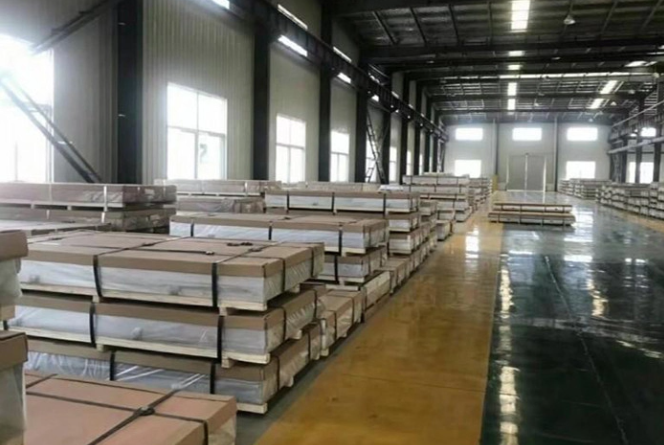

Type: Coil; Sheet; Plate
Temper: 6000-S-90, 6000-IBR-100, 6000-IH-90, 6000-HS-115, 6000-R-110
Thickness: 0.7~4.0mm
Width: Customers’ Requirement
Tolerance: Min Width Tolerance ±0.01
| Grade | 6000-S-90 | 6000-IBR-100 | 6000-IH-90 | 6000-HS-115 | 6000-R-110 | 5000-S-110 | 5000-RSS-110 | 5000-ST-85 Note 4 |
|---|---|---|---|---|---|---|---|---|
| Si Note 3 | 0.5 to 1.5 | 0.7 to 1.5 | 0.5 to 1.5 | 0.6 to 1.5 | 0.5 to 1.5 | 0.20 max. | 0.20 max. | 0.40 max. |
| Fe | 0.50 max. | 0.35 max. | 0.35 max. | 0.40 max. | 0.50 max. | 0.35 max. | 0.35 max. | 0.40 max. |
| Cu | 0.25 max. | 0.25 max. | 0.25 max. | 0.90 max. | 0.25 max. | 0.15 max. | 0.15 max. | 0.10 max. |
| Mn | 0.40 max. | 0.35 max. | 0.20 max. | 0.45 max. | 0.25 max. | 0.20 to 0.50 | 0.20 to 0.50 | 1.0 max. |
| Mg Note 3 | 0.25 to 1.00 | 0.2 to 0.8 | 0.25 to 0.90 | 0.3 to 1.0 | 0.2 to 0.7 | 4.0 to 5.0 | 4.0 to 5.0 | 2.6 to 3.6 |
| Cr | 0.15 max. | 0.10 max. | 0.15 max. | 0.25 max. | 0.10 max. | 0.10 max. | 0.10 max. | 0.30 max. |
| Zn | 0.30 max. | 0.20 max. | 0.10 max. | 0.15 max. | 0.20 max. | 0.25 max. | 0.25 max. | 0.20 max. |
| Ti | 0.25 max. | 0.15 max. | 0.10 max. | 0.15 max. | 0.15 max. | 0.10 max. | 0.10 max. | 0.15 max. |
| VA | 0.10 max. | 0.10 max. | ||||||
| Others-Each | 0.05 max. | 0.05 max. | 0.05 max. | 0.05 max. | 0.05 max. | 0.05 max. | 0.05 max. | 0.05 max. |
| Others-Total | 0.15 max. | 0.15 max. | 0.15 max. | 0.15 max. | 0.15 max. | 0.15 max. | 0.15 max. | 0.15 max. |
max. = maximum
Note 1: Chemical composition shall be determined per ASTM E34, ASTM E101, ASTM E607, ASTM E1251, or DIN EN 14726. In cases of dispute, referee method shall be ASTM E34.
Note 2: Chemical composition based on product (coil or sheet/blank) analysis.
Note 3: Although the specified ranges for Silicon, Magnesium, Manganese, and Copper are wide, it is required that each supplier will use process control to maintain the composition to within a 0.4 range for these elements for production material.
Note 4: GMW15192M-Al-S-5000-ST-85 was formerly GMW15192M-AL-S-5000-ST-90-90 or GMW15192M-Al-S-5000-ST-90.
| Property | Unit | 6000-S-90 | 6000-IBR-100 | 6000-IH-90 | 6000-HS-115 | 6000-R-110 | 5000-S-110 | 5000-RSS-110 | 5000-ST-85 Note 5 |
|---|---|---|---|---|---|---|---|---|---|
| 0.2% Offset Yield Strength | MPa | 90 to 140 | 100 to 150 | 90 to 130 | 115 to 170 | 110 to 160 | 110 to 160 | 110 to 150 | 85 to 130 |
| Ultimate Tensile Strength (minimum) | MPa | 200 | 200 | 175 | 250 | 200 | 250 | 250 | 200 |
| YS/UTS | — | <0.60 | — | <0.60 | — | — | <0.60 | — | — |
| Uniform Elongation (minimum) | % | 20 | 19 | 19 | 18 | 18 | 20 | 20 | 17 |
| Total Elongation (minimum) | % | 23 | 22 | 23 | 20 | 21 | 23 | 23 | 20 |
| Minimum n-value (10% to 20% strain) | — | 0.23 | 0.23 | 0.23 | 0.23 | 0.22 | 0.25 | 0.25 | 0.23 |
| Minimum n-value (4% to 6% strain) For information only |
— | 0.26 | — | 0.26 | — | — | 0.26 | — | 0.26 |
| Minimum r-value (at 10% strain) | — | 0.50 | 0.50 | 0.60 | 0.50 | 0.50 | 0.60 | 0.60 | 0.60 |
| Minimum r-value (at 8% to 12% strain) For information only |
— | 0.55 | — | 0.60 | — | — | 0.60 | — | 0.60 |
UTS = Ultimate Tensile Strength, YS = Yield Strength
Note 1: For production material, required mechanical properties shall be guaranteed for a minimum of three months after delivery to a GM Manufacturing Plant. For material qualification, required mechanical properties shall be guaranteed for a minimum of six months after SHT.
Note 2: Mechanical properties shall be determined according to GMW3335.
Note 3: Additional demands can be specified by regional units.
Note 4: Parameters valid in the transverse rolling direction.
Note 5: GMW15192M-Al-S-5000-ST-85 was formerly GMW15192M-AL-S-5000-ST-90-90 or GMW15192M-Al-S-5000-ST-90.
