Aluminium Alloy
Aluminum alloy is a material composed of aluminum and other metal elements
with light weight, high strength characteristics, widely used in industrial and manufacturing fields.

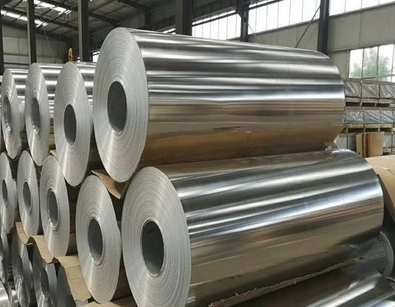

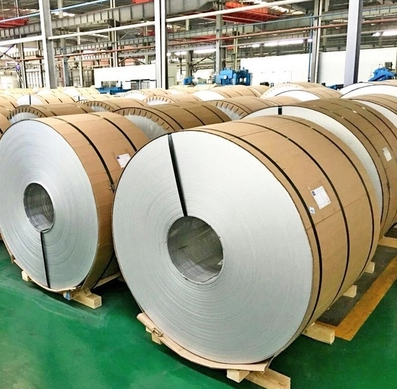

3000 Series
Aluminium and aluminium alloy sheets, strips and plates
A family of aluminum alloys consisting mainly of aluminum, manganese, and copper. With good strength and corrosion resistance and low density, it has important applications in the aerospace field. Ideal for structural parts for aircraft and spacecraft. It can reduce the weight of the aircraft, improve flight performance, and also can be used for a long time in harsh environments.
Application: General industrial aluminum and aluminum alloy rolled sheet and strip
Material: A 3003 / A 3004 / A 3005 / A 3103 /A 3104 / A 3105 / A 3203
Thickness: 0.1-200mm
Width:980-2450mm
Temper: O H14/H24/H34
| Grade | Symbol |
Informative reference (Characteristics and examples of application) |
|---|---|---|
| 3003 3103 3203 |
A 3003 P A 3103 P A 3203 P |
Slightly higher strength than that of 1100 and excellent in formability, weldability and corrosion resistance. For gerneral vessels,architectural materials, materials for ships, materials for fins, various containers and others. |
| 3004 3104 |
A 3004 P A 3104 AP |
Higher strength than that of 3003, excellent in formability and good in corrosion resistance. For beverage cans, roofplates, materials for door panels, coloured aluminium, lamp socket, and others. |
| 3005 | A 3005 P | Higher strength than that of 3003, excellent in corrosion resistance. For architectural materials, coloured aluminium and others. |
| 3105 | A 3105 P | Slightly higher strength than that of 3003, excellent in formability and corrosion resistance. For architectural materials, coloured aluminium, caps and others. |
| Alloy No. | Si | Fe | Cu | Mn | Mg | Cr | Zn | Ga,V,NI, B,zR,etc. |
Ti | Others Individual | Others Total | AL |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 3003 | 0.6 max. | 0.7 max | 0.05 to 0.20 | 1.0 to 1.5 | — | — | 0.10 max. | — | 0.05 max. | 0.15 max. | Remainder | |
| 3103 | 0.50 max. | 0.7 max | 0.10 max. | 0.9 to 1.5 | 0.30 max. | 0.10 max. | 0.20 max. | Zr+Ti 0.10 max. | — | 0.05 max. | 0.15 max. | Remainder |
| 3203 | 0.6 max. | 0.7 max | 0.05 max. | 1.0 to 1.5 | — | — | 0.10 max. | — | — | 0.05 max. | 0.15 max. | Remainder |
| 3004 | 0.30 max. | 0.7 max | 0.25 max. | 1.0 to 1.5 | 0.8 to 1.3 | — | 0.25 max. | — | — | 0.05 max. | 0.15 max. | Remainder |
| 3104 | 0.6 max. | 0.8 max. | 0.05 to 0.25 | 0.8 to 1.4 | 0.8 to 1.3 | — | 0.25 max. | Ga 0.05 max., V 0.05 max. | 0.10 max. | 0.05 max. | 0.15 max. | Remainder |
| 3005 | 0.6 max. | 0.7 max | 0.30 max. | 1.0 to 1.5 | 0.20 to 0.6 | 0.10 max. | 0.25 max. | — | 0.10 max. | 0.05 max. | 0.15 max. | Remainder |
| 3105 | 0.6 max. | 0.7 max | 0.30 max. | 0.30 to 0.8 | 0.20 to 0.8 | 0.20 max. | 0.40 max. | — | 0.10 max. | 0.05 max. | 0.15 max. | Remainder |
| Symbol | Temper grade (2) | Thickness mm |
Tensile strength N/mm2 |
Proof stress N/mm2 |
Elongation(14) % A50mm |
Thickness mm |
Inside radiums |
|---|---|---|---|---|---|---|---|
| A 3003 P A 3203 P |
O | 0.2 or over, up to and incl. 0.3 | 95 min 135 max. |
— | 18 min. | 0.2 or over, up to and incl.6 | Flat on itself |
| A 3003 P A 3203 P |
O | Over 0.3, up to and incl. 0.8 | 95 min 135 max. |
35 min. | 20 min. | 0.2 or over, up to and incl.6 | Flat on itself |
| A 3003 P A 3203 P |
O | Over 0.8, up to and incl. 1.3 | 95 min 135 max. |
35 min. | 22 min. | 0.2 or over, up to and incl.6 | Flat on itself |
| A 3003 P A 3203 P |
O | Over 1.3, up to and incl. 6.5 | 95 min 135 max. |
35 min. | 25 min. | 0.2 or over, up to and incl.6 | Flat on itself |
| A 3003 P A 3203 P |
O | Over 6.5, up to and incl. 75 | 95 min 135 max. |
35 min. | 23 min. | 0.2 or over, up to and incl.6 | Flat on itself |
| A 3003 P A 3203 P |
H14 H24 |
0.2 or over, up to and incl. 0.3 | 140 min. 180 max. |
— | 1 min. | 0.2 or over, up to and incl.9 Over 2.9, up to and incl.6 |
Thickness x 1 Thickness x 1.5 |
| A 3003 P A 3203 P |
H14 H24 |
Over 0.3, up to and incl.0.5 | 140 min. 180 max. |
115 min. | 2 min. | 0.2 or over, up to and incl.9 Over 2.9, up to and incl.6 |
Thickness x 1 Thickness x 1.5 |
| A 3003 P A 3203 P |
H14 H24 |
Over 0.5, up to and incl. 0.8 | 140 min. 180 max. |
115 min. | 3 min. | 0.2 or over, up to and incl.9 Over 2.9, up to and incl.6 |
Thickness x 1 Thickness x 1.5 |
| A 3003 P A 3203 P |
H14 H24 |
Over 0.8, up to and incl. 1.3 | 140 min. 180 max. |
115 min. | 4 min. | 0.2 or over, up to and incl.9 Over 2.9, up to and incl.6 |
Thickness x 1 Thickness x 1.5 |
| A 3003 P A 3203 P |
H14 H24 |
Over 1.3, up to and incl. 2.9 | 140 min. 180 max. |
115 min. | 5 min. | 0.2 or over, up to and incl.9 Over 2.9, up to and incl.6 |
Thickness x 1 Thickness x 1.5 |
| A 3003 P A 3203 P |
H14 H24 |
Over 2.9, up to and incl.4 | 140 min. 180 max. |
115 min. | 5 min. | 0.2 or over, up to and incl.9 Over 2.9, up to and incl.6 |
Thickness x 1 Thickness x 1.5 |
| A 3003 P A 3203 P |
H14 H24 |
Over 4, up to and incl. 6.5 | 140 min. 180 max. |
115 min. | 5 min. | 0.2 or over, up to and incl.9 Over 2.9, up to and incl.6 |
Thickness x 1 Thickness x 1.5 |
| A 3004 P A 3104 P |
O | 0.2 or over, up to and incl. 0.5 | 155 min.195 max. | — | 10 min. | 0.2 or over, up to and incl.0.8 Over 0.8, up to and incl.3 | Flat on itself Thickness x 0.5 |
| A 3004 P A 3104 P |
O | Over 0.5, up to and inlc. 0.8 | 155 min.195 max. | — | 14 min. | 0.2 or over, up to and incl.0.8 Over 0.8, up to and incl.3 | Flat on itself Thickness x 0.5 |
| A 3004 P A 3104 P |
O | Over 0.8, up to and inclu. 1.3 | 155 min.195 max. | 60 min. | 16 min. | 0.2 or over, up to and incl.0.8 Over 0.8, up to and incl.3 | Flat on itself Thickness x 0.5 |
| A 3004 P A 3104 P |
O | Over 1.3, up to and incl.3 | 155 min.195 max. | 60 min. | 18 min. | 0.2 or over, up to and incl.0.8 Over 0.8, up to and incl.3 | Flat on itself Thickness x 0.5 |
| A 3004 P A 3104 P |
H14 H24 (3) H34 |
0.2 or over, up to and incl. 0.5 | 225 min.265 max. | — | 1 min. | 0.2 or over, up to and incl.0.8 Over 0.8, up to and incl.3 | Thickness x 1 Thickness x 1.5 |
| A 3004 P A 3104 P |
H14 H24 (3) H34 |
0.2 or over, up to and incl. 0.5 | 225 min.265 max. | — | 3 min. | 0.2 or over, up to and incl.0.8 Over 0.8, up to and incl.3 | Thickness x 1 Thickness x 1.5 |
| A 3004 P A 3104 P |
H14 H24 (3) H34 |
0.2 or over, up to and incl. 0.5 | 225 min.265 max. | — | 3 min. | 0.2 or over, up to and incl.0.8 Over 0.8, up to and incl.3 | Thickness x 1 Thickness x 1.5 |
| A 3004 P A 3104 P |
H14 H24 (3) H34 |
0.2 or over, up to and incl. 0.5 | 225 min.265 max. | — | 4 min. | 0.2 or over, up to and incl.0.8 Over 0.8, up to and incl.3 | Thickness x 1 Thickness x 1.5 |
